Your Professional Galvalume Coil Supplier
Qingdao Heyan Steel Structure Co., Ltd., ("HEYAN STEEL" for short )specializes in supplying coated and plated products, as well as a wide range of steel and non-ferrous metal materials.
Partners
Today, we collaborate with over 110 countries across Southeast Asia, South America, the Middle East, North America, and Europe. With growing international demand, Heyan Steel has earned global customer trust through its extensive production experience, robust expertise, and dependable after-sales support.
Our Production Lines
Based in Binzhou, we operate three production lines dedicated to coated and plated products. Additionally, we have invested in facilities for seamless steel pipes, stainless steel, aluminum profiles, and other items.
Our Inventory Warehouses
We maintain inventory warehouses in various regions throughout China, ensuring we can promptly provide suitable products to meet customer requirements.
-
![Durable AZ150 Galvalume Steel Coil Supplier - Anti-Corrosive & High Temperature Resistance]()
Durable AZ150 Galvalume Steel Coil Supplier - Anti-Corros...Material: SGLCC / CS Type A Al-Zinc Coating: 150g/m² (55% Al, 43.4% Zn, 1.6% Si) Thickness: 0.13mm - 2.0mm Width: 700mm - 1250mmview more -
![Hot Dipped Galvalume Coil]()
Hot Dipped Galvalume CoilHot dipped Galvalume Coil is a highly corrosion-resistant material. It is made of cold-rolled steel and coated with a coating consisting of 55% aluminum, 43.3% zinc, and 1.6% silicon. It is also...view more -
![AZ50 Galvalume Coil]()
AZ50 Galvalume CoilAZ50 Galvalume coil refers to a steel coil coated with aluminum-zinc alloy coating, where "AZ" stands for aluminum-zinc alloy, and "50" indicates the weight of the coating, specifically 50 grams...view more -

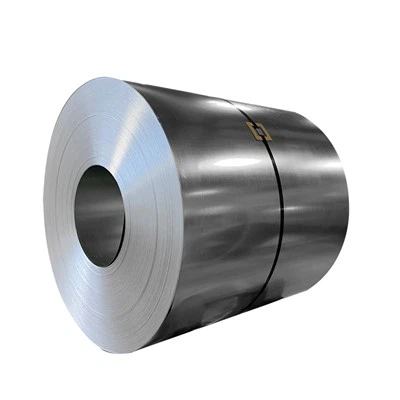

![AZ55 Galvalume Coil]()
AZ55 Galvalume CoilAZ55 Galvalume Coil is a highly corrosion resistant material. It is made of cold rolled steel and coated with a coating consisting of 55% aluminum, 43.3% zinc and 1.6% silicon. It is also known as...view more -
![High Zinc Coating Aluminum Zinc Coil]()
High Zinc Coating Aluminum Zinc CoilHigh Zinc Coating Aluminum Zinc Coil is a highly corrosion-resistant material. It is made of cold-rolled steel and coated with a coating consisting of 55% aluminum, 43.3% zinc, and 1.6% silicon....view more
Galvalume Coil is a type of coated steel product that combines the corrosion resistance of aluminum with the strength and flexibility of zinc. It is produced by hot-dipping cold-rolled steel into an alloy composed of approximately 55% aluminum, 43.5% zinc, and 1.5% silicon. This unique composition results in a product that offers superior long-term corrosion protection, especially in outdoor and industrial environments.
Specifications
|
Thickness |
0.12mm-6mm |
|
Width |
The conventional width below 0.5mm is 1000mm, 1200mm, and above is 1000, 1250mm |
|
coil weight |
3-10 tons /customized |
|
Tolerance |
"+/-0.02 mm |
|
Substrate Type |
Hot rolled coil, Cold rolled coil |
|
Surface structure |
Zero spangles, Small spangles, Regular spangles, Big spangles |
|
Zinc layer thickness |
30g/㎡-275g/㎡ (Z275/G90) |
|
Standard |
AISI, ASTM, BS, GB, JIS |
|
Implementation standards |
GB/T2518 GB/T25052, EN10346, JIS G3302, ASTMA653 |
|
Certificates |
SGS, ISO 9001,CE |
Main Features
Corrosion resistance
When zinc is abraded, aluminum forms a dense layer of alumina that prevents further corrosion of the corrosive material inside.
Heat resistance
Aluminum zinc alloy steel has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius.
Thermal reflexes
The heat reflectivity of Al Zn steel plate is very high, which is two times that of galvanized steel sheet.
Economical efficiency
Since the density of 55% AL-Zn is smaller than the density of Zn, the aluminum-zinc-plated steel sheet is more than 3% larger than the area of the plated steel sheet when the weight is the same and the thickness of the gold-plated layer is the same.
Galvalume Coil Process
Pre-treatment
Through the pre-treatment system, the contaminants on the surface of the base metal will be removed. It often includes degreasing, rinsing, pickling, etc.
Hot-dip Galvalume Process
After going through the annealing furnace, steel sheets are dipped into the Al-Zn pool. Then there is an air knife to remove the extra coating to keep the thickness of the coating.
Inspection & Coiling
The coated steel sheet will go through the quality control system and then be rolled up for sale.
So the structure of Galvalume steel includes: Base metal (cold-rolled steel sheets) The al-Zn coating layer (top and back sides)
☆Construction Industry: Used for roofs, interior and exterior wall panels, soundproof walls, pipes, garages, modular houses, tool sheds, etc.
☆ Automobile Industry: Used for buckets, mufflers, exhaust pipes, wiper attachments, fuel tanks, truck boxes, etc.
☆ Home Appliances: Used for washing machines, refrigerator back panels, gas stoves, air conditioners,
electronic microwave ovens, LCD frames, CRT explosion-proof belts, LED backlights, electrical cabinets, etc.
☆ Agriculture: Used for pig houses, chicken houses, granaries, greenhouse pipes, etc.
☆ Others: Used for hot section insulation covers, heat exchangers, dryers, water heaters, etc.
☆Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential.
☆The contact points of these bands on the coil edge to be protect with edge protectors.
☆Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.
☆Wooden and iron pallet can be used or as your requirements.
☆And each packed coil to be properly wrapped with band, three-six such band through the eye of coil at about equal distance.
Packaging & Shipping
Our Certificate
FAQ
We're professional galvalume coil manufacturers in China, specialized in providing high quality products with low price. We warmly welcome you to wholesale discount galvalume coil from our factory. For pricelist, contact us now.
AZ150 Galvalume Coil, AZ50 Galvalume Coil, High Zinc Coating Aluminum Zinc Coil
